IC : Non-Oscillating Air Circulator

IC : Non-Oscillating Air Circulator

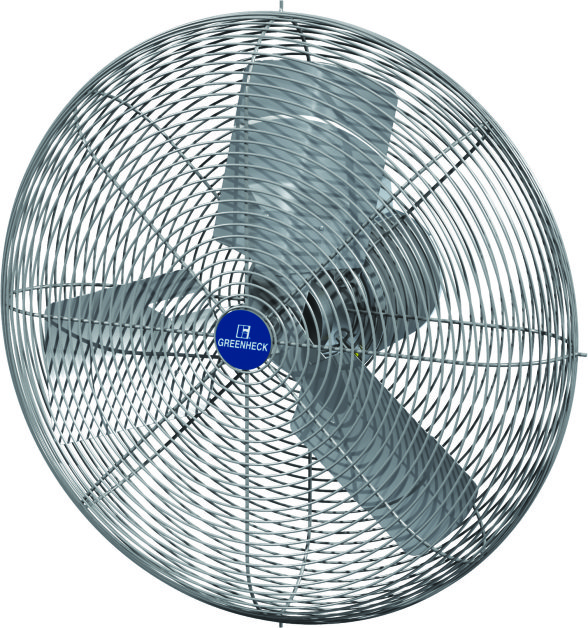

Model IC is a direct drive air circulator engineered for spot cooling and air recirculation in commercial and industrial environments. Ideal for factories, warehouses, and garages, it delivers targeted airflow to improve occupant comfort and overall air movement. Equipped with a two-speed motor and vertical locking tilt adjustment, Model IC allows precise directional control to move air exactly where it is needed. A variety of mounting accessories are available to support flexible installation options, fan sizes 16–30 offer customizable mounting solutions (sold separately), while size 36 comes equipped with a heavy-duty wall, post, or ceiling bracket for added convenience and stability.

Product Highlights

Airflow (cfm)
1,320 to 12,500
Airflow Direction
Circulating
Installation Type
Wall
Overhead
Base/Floor
Column
Mounting Location
Indoor
View More Details >

Features

Mounting Propeller Two-Speed Operation Wire Guards
Standard
Optional

Select from menu to Highlight feature

Product Details

Certifications

UL/cUL 507 Listed for Electrical

Fan Sizes

16 to 36 inches

Drive Type

Direct Drive

Impeller Material

Aluminum (sizes 16-30)

Galvanized Steel (size 36)

Impeller Type

Propeller

Documents

Drawings

Static Model File Type Action Type
Revit icon Revit .RFA eMail icon Request Drawing
3D CAD 3D CAD .DWG eMail icon Request Drawing
3D CAD 2D CAD .DWG Download icon Download
