ERVi : Indoor Energy Recovery Ventilator

ERVi : Indoor Energy Recovery Ventilator

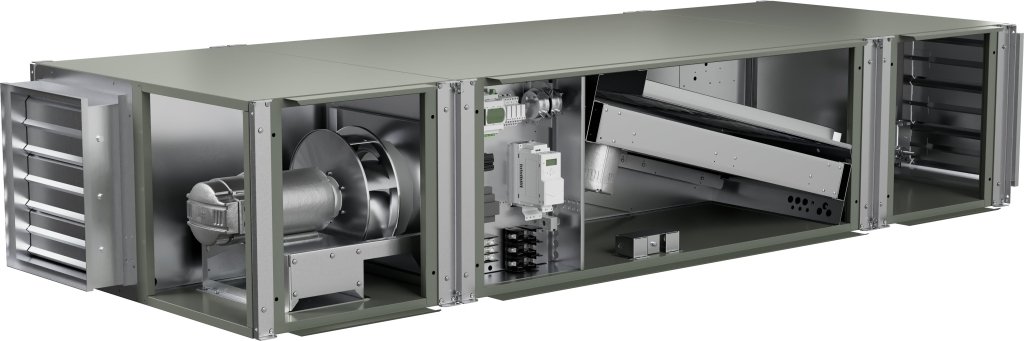

Designed specifically for indoor installations, the ERVi is Greenheck’s low-profile, modular energy recovery solution engineered to maximize performance within a compact footprint. Utilizing high-efficiency total enthalpy wheels and advanced control technology, the ERVi delivers effective sensible and latent energy transfer while minimizing required access and service clearances. Its modular construction and wide range of configuration options provide exceptional installation flexibility, making the ERVi an ideal solution for space-constrained mechanical rooms and diverse indoor ventilation applications.

Product Highlights

Airflow (cfm)
375 to 2,500
Enthalpy Wheel Effectiveness (%)
70-80%
Maximum Static Pressure (in. wg.)
3
Mounting Location
Indoor
Unit Configuration
100% Outdoor Air
View More Details >

Features

Cabinet Construction Disconnect Switch Energy Wheel Low Profile Motor Single Side Access
Standard
Optional

Select from menu to Highlight feature

Product Details

Wheel Cross Leakage (%)

3-5%

Wheel Maintenance

Removable segments - wash with mild detergent and low pressure tap water (Polymer)

Wash with low pressure tap water, vaccum off surfaces, purge with compressor air, or wipe/dust particles from surface (Aluminum)
